Tiles laying instruction using Tiles Alignment System (TAS)

TAS consists of two details - wedge and clip.



Clip is reusable detail.

Image description

Wedge

Image description

Clip

Image description

1.  Apply the adhesive composition according to the manufacturer's instructions (this is important, do not make glue thick). Set two clips under the tile on each side, departing from the edge of the tiles about 50mm.

Image description

2.  Place the next tile.

Image description

3.  Insert a wedge between the tiles and the top of the clip fix with the lower part of the wedge to be fits snugly against the tiles and edges (sides) of tiles will be smooth.

Image description

4.  After adhesive drying, hit the top of the clip along the seam of tiles to remove the wedge.

5.  Collect wedges for further use.

Image description

6. TAS recommended to be used at temperature of not less +10С

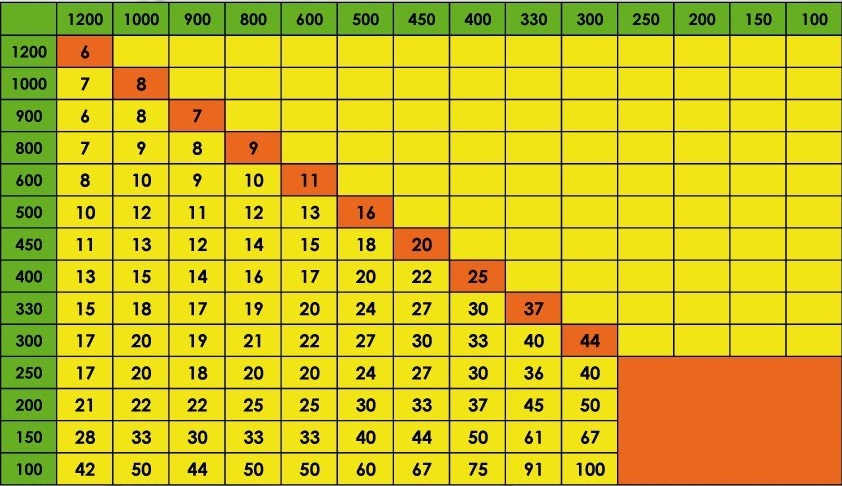

The table of recomended TAS quantities

Image description
Image description

- Tiles size mm

Image description
Image description
Image description
Image description

To know advantages of TAS usage we inform you about possible errors and difficulties while tiling



The most difficult point in ceramic and large format ceramic granit (900 X 300, 750 X 250, 500 X 300, 600 X 600, 450 X 450 mm etc.) tiles is aligning of joints (seams) in the plane during installation. Tilers use levels as a rule, but the main method is a "Touch" method. Further, some professionals leveled the surface carefully to use the minimum adhesive layer to minimise the risk of "Drawdown" while glue dries. Avoid glue thickness not to breake the glue instruction. Which leads to poor adhesion, void and cavities formation. Manufacturers strongly recommend to use at least 4 - 5 mm thickness of adhesive layer for large format tiles as the adhesive composition is a damping element so it releases tension between the base and tiles.



While installing so-called "Thin" electric underfloor heating, heating mats are installed in the adhesive layer under the tiles. The thickness of the adhesive layer with no heating elements places comes to 6 - 10 mm and it is impossible to avoid the adhesive (tiles) "Drawdown". To avoid it electric mats are filled in minimal adhesive layer, but in this case the heating mats become not effective - the heating time increases and heating cost grow up.
